CWDM Laser
Description
Description
Product details
Model Number:Pigtail Photodiode
Type:Laser Diode
Package Type:Pigtail
Specification
Parameter | Rating |
Max. Forward Voltage | 2V |
Max. Reverse Voltage | 20V |
Max. Forward Current | 2mA |
Max. Reverse Current | 100mA |
Wavelength | 1270-1610nm |
Connector | FC,SC,ST |
Standards
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
Features
- MQW quantum well structure, built-in monitor
- Low threshold current, high slope efficiency
- High linearity
- Coaxial package, high reliability
- Good insertion and removal performance
Application
- Applied to short-to-medium-range optical fiber transmission systems, such as CATV reverse optical transmission, GSM, CDMA optical transmission, and monitoring systems.
- Optical transceiver module
- Light instrumentation
Product standard
- Match the ROSH standard
- Match the REACH standard
Supply Ability
6KK PCS/Month
Packaging Details
Selling Units:Single item
Single package size: 46X31X29 cm
Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products

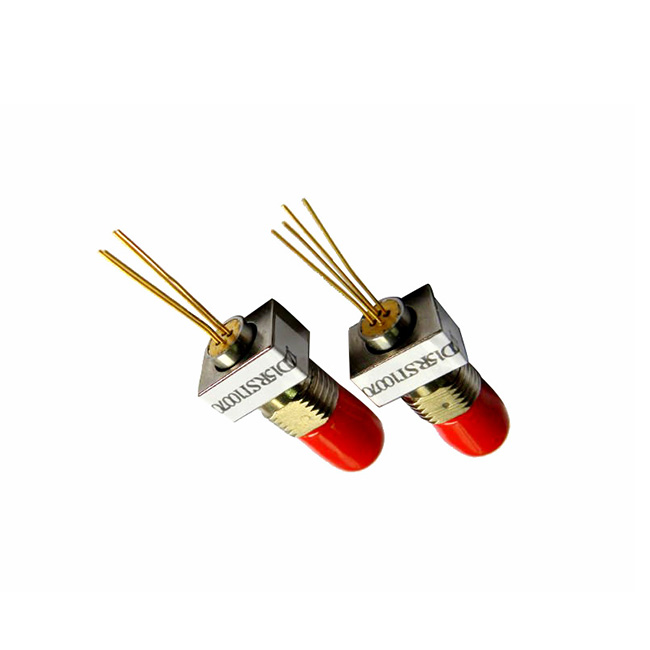

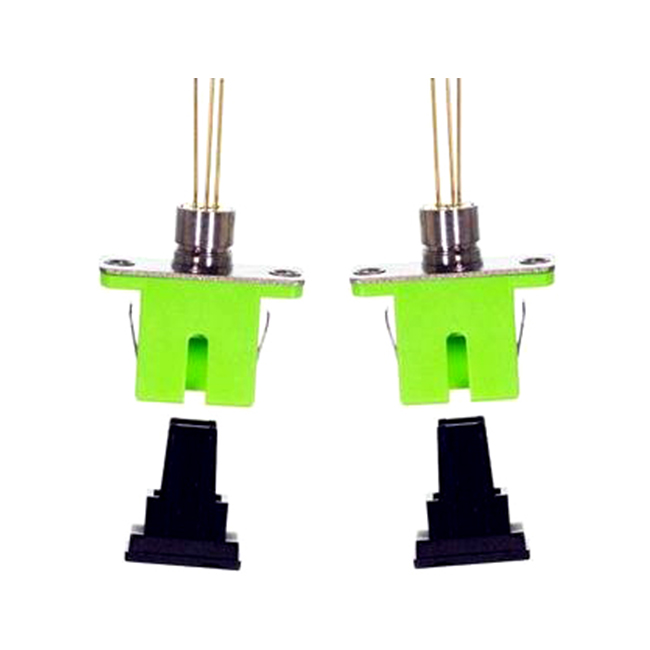

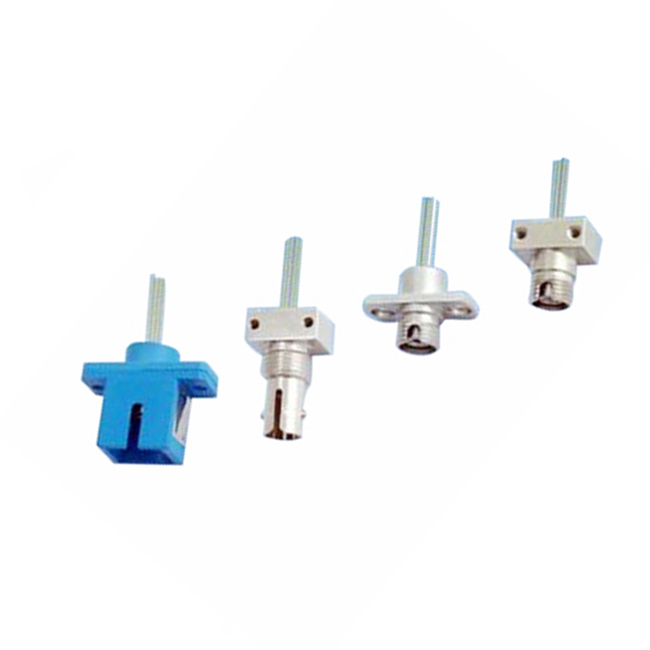

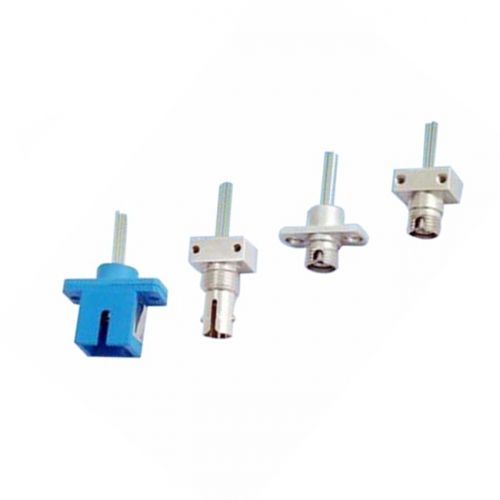

Picture Example:
